VIG 20-S Heated FID

VIG 20-S Heated FID

Pine Item #54367

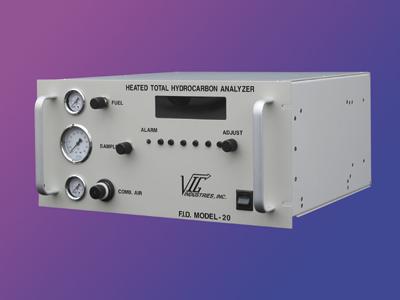

Model 20 is an FID single-channel, oven-heated total hydrocarbon analyzer that offers high accuracy, sensitivity and stability.  Use the Model 20 for process, efficiency and safety monitoring applications.

It can be used for continuous monitoring and control of process gas streams that utilize organic solvents, crude oil and other chemicals containing hydrocarbons; for effluent monitoring to evaluate VOC reductions in environmental compliance programs; and for efficiency control of incinerators, scrubbers, carbon absorbers and other abatement equipment.

Features include an internal combustion air pump that eliminates the need to plumb out an external air supply, automatic ranging, automatic fuel and sample shut-off system and an automatic flame-out indicator.  Alarm and oven settings are adjustable.  Optional rental accessories include a 50-foot heated sample line, heated sample probe and data chart recorder.  Hydrogen fuel is a purchased item.


Flame ionization detector (FID)

Microprocessor-based oven-heated

Internal combustion air pump

Quantity must be 1 or more
Translation missing: en.products.product.equipment_available
Request a Quote


Technical Specifications

RangeTwo sets 0 to 10 ppm 0 to 100 ppm 0 to 1000 ppm and 0 to 10000 ppm 0 to 100 ppm 0 to 1000 ppm 0 to 10000 ppm 0 to 100000 ppm
Precision± 1% of full scale
Response Time<1 sec to 90% of full scale
Oven TemperatureAdjustable 200 to 400F
Output4 to 20mA and 0 to 1 5 or 10V


Dimensions19 x 18\ x 7\"""\"""483 x 457 x 178 mm


Weight55 lbs25 kg
