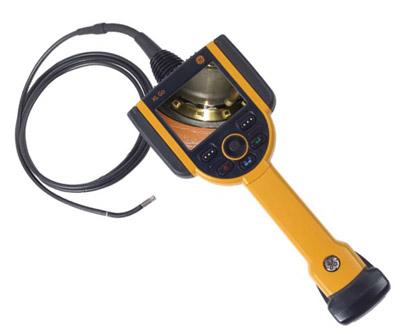

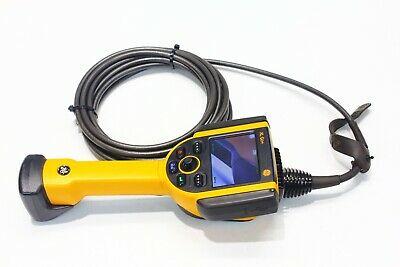

GE XL Go Videoprobe Borescope Inspection System - 3m / 6m x 6mm
GE XL Go Videoprobe Borescope Inspection System - 3m / 6m x 6mm
GE Inspection Technologies

GE XL Go Videoprobe Borescope Inspection System - 3m / 6m x 6mm

Pine Item #54808

Now Combining portability with performance, the XL Go delivers sharp, clear digital images on a system designed to meet inspection needs across a wide range of industry applications.

The system's high-output white LED and crystal-clear VGA LCD give inspectors the sharp, detailed images needed to ensure accurate inspections. An intuitive user interface makes it easy to save still images or record motion video to the internal flash memory or removable USB ThumbDrive.



Features:

LED technology - uses less power and runs cooler than traditional illumination systems

Still images and motion video - capture non-compressed BMPs compressed JPGs or MPEG video

User interface - five buttons make operation simple and intuitive

VGA LCD - matches display to CCD imager performance for outstanding image quality

Applications:

Aerospace

Oil & Gas

Power Generation

Wind Power

Process Industries

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Power7.2V 5100 mAh and10200 mAh Battery Pack (1 of each) AC: 90-264 VAC 47-63 Hz <1.2Arms @ 90 VAC DC: 10.2V +5%/-3%4.9 A
ConstructionPolycarbonate housings with integrated Versalon\!(JP) bumpers
LCD MonitorIntegrated 9.40 cm (3.70 in) active matrix VGA color LCD
Joystick Control360° All-Way® tip articulation menu access and navigation
Button setAccess user functions measurement and digital functions
AudioIntegrated 2.5 mm headset/microphone jack
Memory1GB flash internal memory. Ashtead also provide you with a 4GB USB memory stick
Data I/O PortsTwo USB® 2.0 ports VGA Video Out
Brightness ControlAuto and Variable
Illumination TypeWhite LED
Long ExposureUp to 12 seconds via auto and manual mode
White BalanceFactory default or user defined
Tip operating temperature-25°C to 80°C (-13°F to 176°F) Reduced articulation below 0°C (32°F)
System Opearting Temperature-20°C to 46°C (-4°F to 115°F) LCD requires warm-up period below 0°C (32°F)
Storage temperature-25°C to 60°C (-13°F to 140°F)
Relative Humidity95% maximum non-condensing
WaterproofInsertion tube and tip to 14.7 psi (1 bar 10.2 m of H2O 33.5 ft of H2O)
Hazardous EnvironmentsNot rated for use in hazardous environments
Operating SystemReal-time multi-tasking operating system
User InterfaceSimple drop-down menu-driven operation Menu navigation using articulation joystick
File ManagerEmbedded file manager software supporting: File and Folder creation naming deleting Store to internal flash C: or USB ThumbDrive Copy be
Audio DataPC compatible .AAC file format
Image ControlInvert Zoom (5X digital) Image Capture and Recall
Digital ZoomContinuous (5.0X)
Image FormatsBitmap (.BMP) JPEG (.JPG)
Video FormatMPEG 4
Text AnnotationBuilt-in full screen text overlay generator
Graphic AnnotationUser placement of arrows
Articulation ControlSteer & Stay articulation lock/fine articulation Tip \"""Home\""" return to neutral forward-tip orientation User-selectable fine or coarse control
Software UpdatesField updateable via USB ThumbDrive
LanguagesEnglish Spanish French German Italian Russian Japanese Korean Portuguese Chinese
Image Sensor1/6 inch Colour SUPER HAD CCD
Pixel Count440000 pixels
Camera HousingTitanium
Tip Articulation (3.0m length)Up/Down - 150° min Left/Right - 150° min
Tip Articulation (6.0m length)Up/Down - 130° min Left/Right - 130° min
TipsOne included
MIL-STD-810FUnited States Department of Defense Environment Tests Sections 506.4 507.4 509.4 510.4 511.4 514.5 516.5 521.2
MIL-STD-461EUnited States Department of Defense Environment Tests United States Department of Defense Electromagnetic Interference RS103
Standards ComplianceGroup 1 Class A: EN61326-1 EN55011 UL IEC EN CSA-C22.2:61010-1 UN/DOT T1-T8
DimensionsUS: 3.75 x 5.25 x 7.3 in. Metric: 95 x 133 x 342 mm
"""
