Magnaflux Y6 220-240V AC Electromagnetic MPI Yoke
Magnaflux

Magnaflux Y6 220-240V AC Electromagnetic MPI Yoke

Pine Item #54145

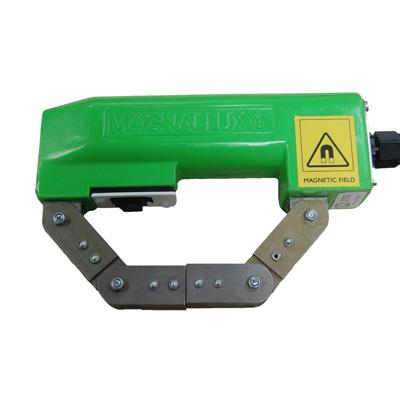

The lightweight, encapsulated, Magnetic Yoke is used for the detection of surface cracking in any ferro-magnetic material. The Y6 Electromagnetic yoke rents with power cable, case, operating sheet and yoke. All contained in a strong, attractive carrying case.

Features:

Sealed, durable construction

Chemical and abrasion resistant

Exceeds ASTM lifting specifications

Individual serial number on each yoke

Articulated, double-jointed legs

Demagnetising capability

Applications:

Field testing

Difficult to reach areas

Spot inspections

In-service inspections

Weld inspection

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Leg Span25 - 250 mm
Cord Length3.7 m
Duty Cycle23%, max on time is 30 seconds
Method of current control and effect on waveformSinusoidal AC mains or DC battery
Duty cycle at maximum output (ratio of current ‘ON’ to ‘Total’ time)0.23
Maximum current ‘ON’ time30 seconds
Recommended pole spacing (maximum and minimum pole spacing)Smin 35 mm Smax 140 mm
Cross sectional dimensions of the poles25 x 25 mm
Pole spacing (AC tangential field strength in kA/m at the central point between the poles on a 500 x 250 x 10 mm steel plate)35 mm: 12 kA/m 140 mm: 2 kA/m 250 mm: 1.4 kA/m
Overall dimensions220 x 155 x 50 mm
Specified electrical protectionIP 64
