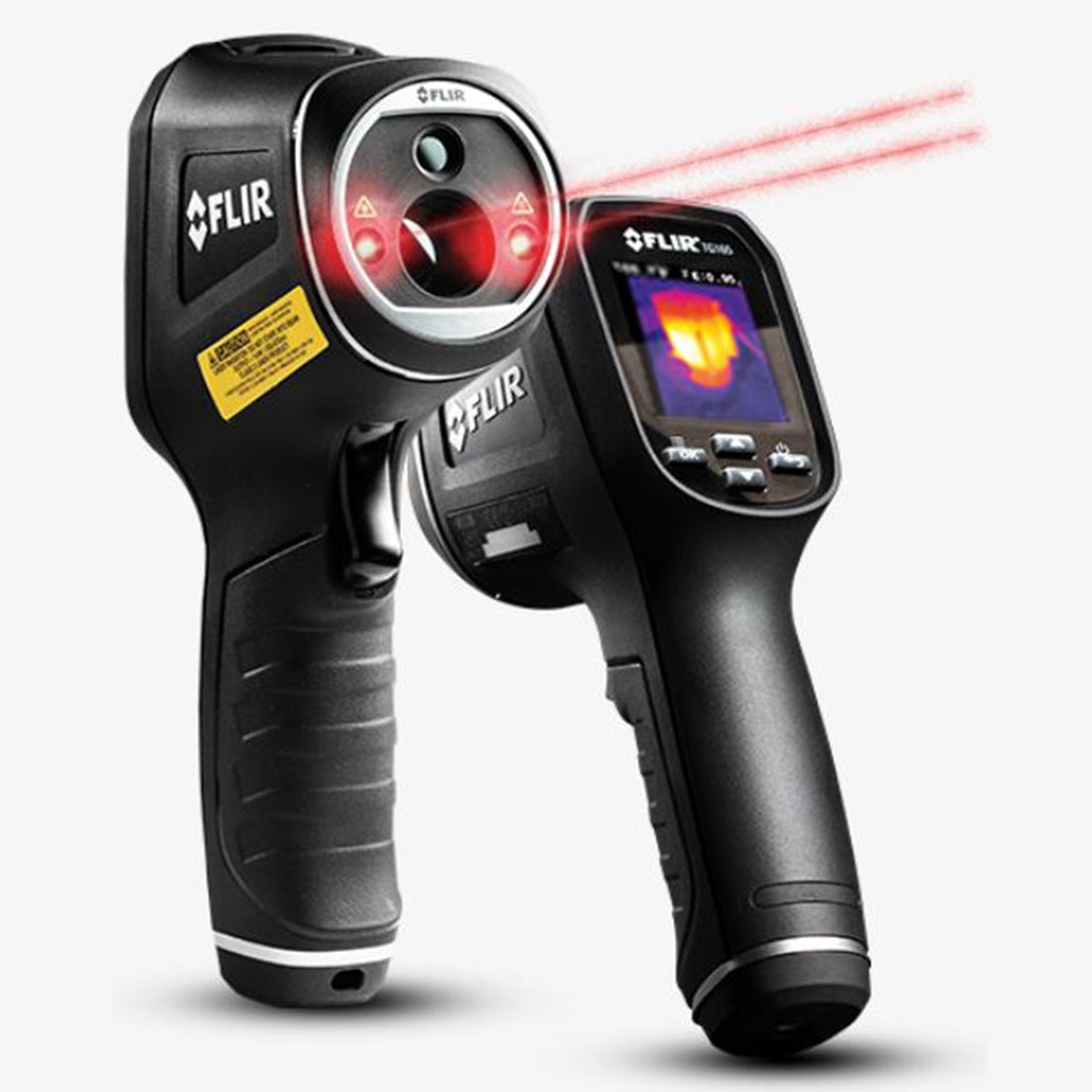

FLIR TG165 Spot Infrared Camera
FLIR Systems

FLIR TG165 Spot Infrared Camera

Pine Item #55223

The FLIR TG165 Spot Thermal Cameras bridge the gap between single spot infrared thermometers and FLIR's legendary thermal cameras. Equipped with FLIR's exclusive Lepton® micro thermal sensor, these cameras let you see the heat so you know exactly where to target the measurement spot. Easily find unseen hot and cold spots for instant troubleshooting, and store images and data to show customers and include in reports.


Instantly shows what’s hot and where to aim

Eliminates blind guesswork

24:1 spot size ratio for safer distance measuring

Intuitive to operate with no special training required

Easily save images and data for documentation

Download images fast over USB or from removable micro SD

Built to withstand a 2-meter drop


Detecting elevated body temperature

Electrical troubleshooting

Warm pipe in a wall

Mechanical overheating

Refrigeration issues

Quantity must be 1 or more
Contact Us for Details
Request Additional Information

Accuracy±1.5% or 1.5°C (2.7°F)
Detector TypeFocal plane array (FPA), uncooled microbolometer
Field of view (FOV)50° x 38,6°
IR Resolution80 × 60 pixels
LaserDual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
Object Temperature Range-25°C to 380°C (-13°F to 716°F)
Thermal Sensitivity/NETD<150 mK
