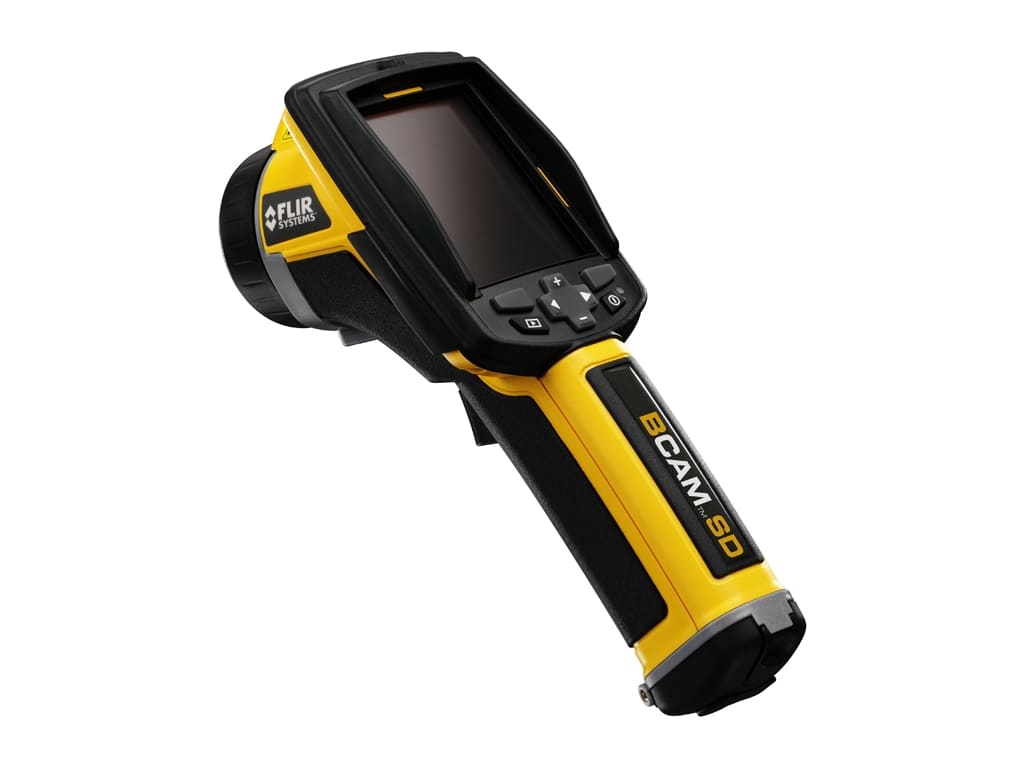

Flir BCAM SD Infrared camera
Infrared (IR) thermography with FLIR cameras is a non-contact method for detecting the difference in temperature between a problem area and its surroundings. Depending on the underlying cause, the problem area may be warmer or colder than its surroundings. This temperature difference is clearly visible in the camera
Features:
Field of view: fixed 25° x 25°
Spectral range: 7.5 to 13µm
Stores 1,000 Radiometric JPEG Images
120 x 120 pixel detector
Razor-Sharp, Thermal Image Quality
Long, 7 Hour Battery Life
Ultra-Portable, Weighs Just 1.2 lbs
Built-in Laser LocatIR
Removable SD Memory Card
Includes New, Powerful QuickReport Software
Easy-to-Operate, Large 3.5 Full Color LCD
Dew Point, Insulation and Color Alarm Features
Temperature range | 14°F to 212°F (-10°C to 100°C) |
Image Storage | 1000 Images (SD card memory) |
Emissivity | 0.1 to 1.0 (adjustable) |
Field of view/min focus distance | 25° X 25°/0.3m |
Thermal sensitivity (N.E.T.D) | <0.10°C at 25°C |
Detector Type | Focal plane array (FPA) uncooled microbolometer; 120 X 120 pixels |
Spectral range | 7.5 to 13µm |
Display | 3.5" color LCD |
Video output | MPEG-4 via USB |
Image Controls | Palettes (Iron, Rainbow, and Black/White), level, span, auto adjust (continuous/manual) |
0.00 Specifications subject to change without notice. www.extech.com Copyright © 2009 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form. 4/23/09 - R1 Features: • High accuracy of 2% and thermal sensitivity better than 0.10°C helps you find problems faster and easier • Automatic Color Alarm alerts users to moisture-laden areas during building scans — detects potential areas of mold growth, as well as verify when structures are moisturefree during the drying out process • Insulation Alarm easily detects areas that don’t fulfill the insulation requirements • Dew Point Alarm displays areas with risk of surface condensation where mold growth could occur • Instant imaging of entire room to reveal wet conditions behind surfaces, such as enameled walls and wallpaper and even in places where moisture meters can’t reach • Long Battery Life lasts for 7 hours of continuous operation on a single charge for uninterrupted inspections • Large 3.5" (89mm) color LCD with razor-sharp resolution • Lightweight (19 ounces), compact, rugged meter with easy grip handle construction meets IP54 dust/splashproof standards • The built-in Laser LocatIR™ pointer quickly helps you associate the hot spot on the IR image with the real physical target which greatly enhances the ability to target inconsistencies • Standard 128MB SD card stores up to 1000 Radiometric JPEG images. All 14,400 thermal pixels of each image can be analyzed using the included QuickReport™ PC Software • Complete with 128MB SD Card, Li-Ion rechargeable battery with 100-260V AC adaptor/charger, QuickReport software with USB cable, lens cap, hand strap, and heavy duty case Non-invasive monitoring and diagnosing of building conditions Provide immediate high-resolution thermal imagery, revealing potential structural and moisture issues, energy efficiency and even rodent or pest discovery BCAM™ SD Thermal Imaging InfraRed Camera Large razor-sharp color LCD with ASP (Advanced Signal Processing) Compact and Lightweight camera only weighs 19 ounces! The thermogram of the apartment building shows the path of a serious leak, completely hidden within the wall, from a washing machine on the third floor QuickReport PC software enables user to analyze Temperature of all 14,400 pixels of any InfraCAM SD JPEG image Features Temperature range 14°F to 212°F (-10°C to 100°C) Image Storage 1000 Images (SD card memory) Emissivity 0.1 to 1.0 (adjustable) Imaging Performance / Image Presentation Field of view/min focus distance 25° X 25°/0.3m Thermal sensitivity (N.E.T.D) <0.10°C at 25°C Detector Type Focal plane array (FPA) uncooled microbolometer; 120 X 120 pixels Spectral range 7.5 to 13µm Display 3.5" color LCD Video output MPEG-4 via USB Image Controls Palettes (Iron, Rainbow, and Black/White), level, span, auto adjust (continuous/manual) Set-up controls Date/time, info, LCD intensity, power down, and English/Spanish languages Laser Classification Class 2 Laser Type Semiconductor AlGalnP Diode Laser: 1mW/635nm (red) Measurement modes Spot, Area, Min/Max Power Source / Environmental Specs Battery Type Li-lon Battery operating time 7 hours, Display shows battery status Charging system In camera, AC adapter or 12V from car with optional 12V cable AC operation AC adapter 90-260VAC, 50/60Hz 12VDC out Voltage 11-16 VDC Operating temperature range 5°F to 122°F (-15°C to 50°C) Storage temperature range -40°F to 158°F (-40°C to 70°C) Humidity Operating and storage 20% to 80%, non-condensing, IEC 359 Shock 25G, IEC 68-2-29 Vibration 2G, IEC 68-2-6 Dimensions/Weight | 9.6x3.2x4.1" (243x81x103mm)/<19oz (0.55kg), including battery |
