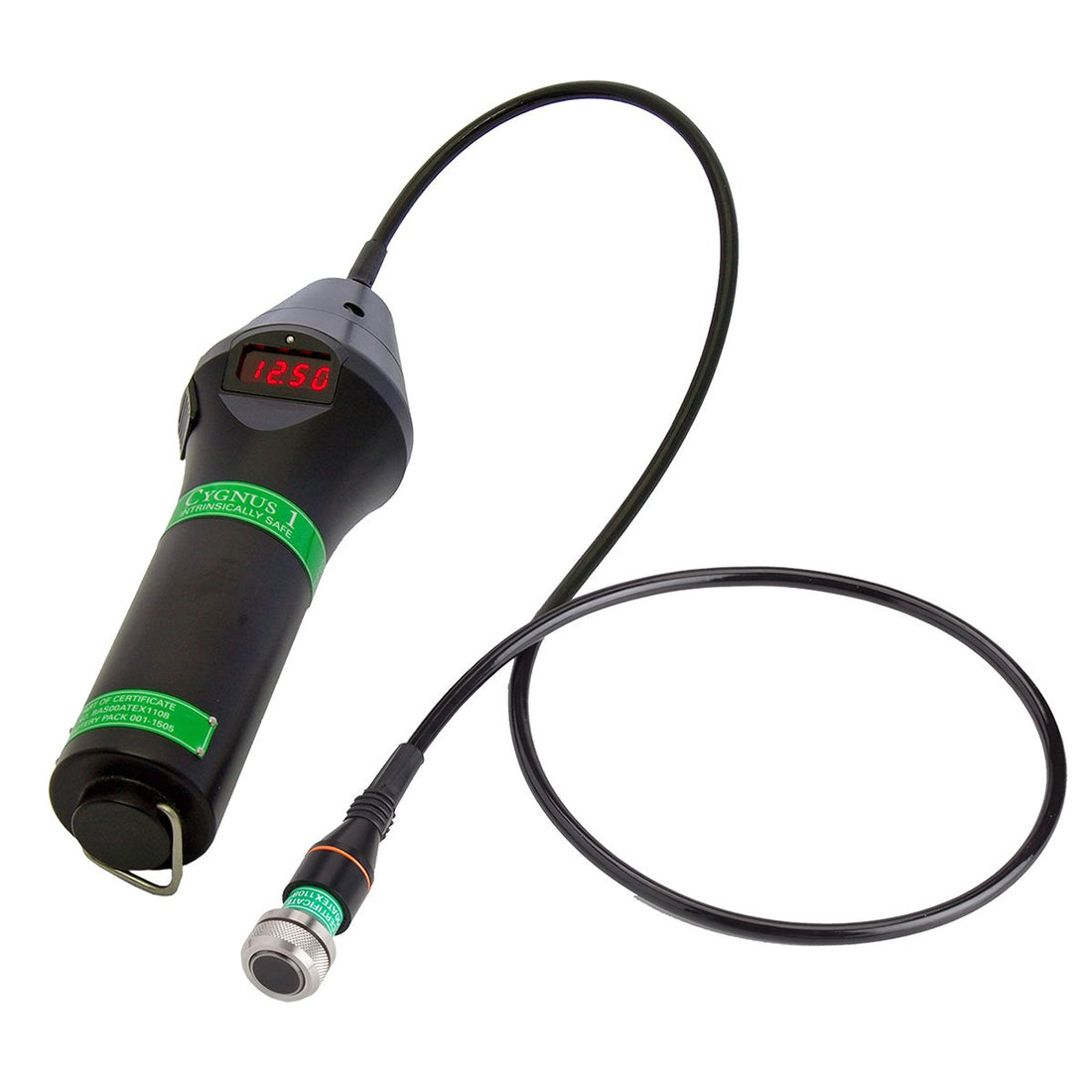

Cygnus 1 Intrinsically Safe IS Ultrasonic Thickness Gauge
Cygnus Instruments

Cygnus 1 Intrinsically Safe IS Ultrasonic Thickness Gauge

Pine Item #54268

A heavy-duty ultrasonic thickness gauge, the Cygnus 1 has been specifically for use in hazardous areas to measure corrosion defects in metal. Easy to use and featuring a lightweight, ergonomic design, the Cygnus does not require surface coating removal to gather accurate ultrasonic thickness measurement readings. The 1I.S has been certified Intrinsically Safe to both EXII 1g EEX iaIIC TG and CSA Class1, Group A, Division1 standards.

Features:

Use in a hazardous atmosphere - Ex II 1 G EEx ia IIC T6

No plant shut-down or hot-work permit necessary

Rugged construction

Stable calibration - linear accuracy - no zero adjustment

1.0-99.9mm measurement range

Rechargeable batteries with charger

Usable on metals and other materials

On switch is only a control automatic Off

LED display with polarised filter

Imperial readout option

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

MaterialsSound velocities between 2000 and 7000 m/s
Range3 mm - 250 mm with 2.25 MHz probe\n\n
Accuracy± 0.1mm
Resolution0.1 mm or 0.05 mm (selectable)
PowerNiMH Rechargeable Battery
DisplayLED display with polarised anti-glare filter
Operating Temperatures-10°C to +50°C (14°F to 122°F)
ComplianceCE British Standard BS EN 15317:2007
EnvironmentalWEEE complaint
ProbesSingle crystal soft-faced compression:\n\n\n
DimensionsUS: 9.4 x 3 in. Metric: 235 x 75mm
