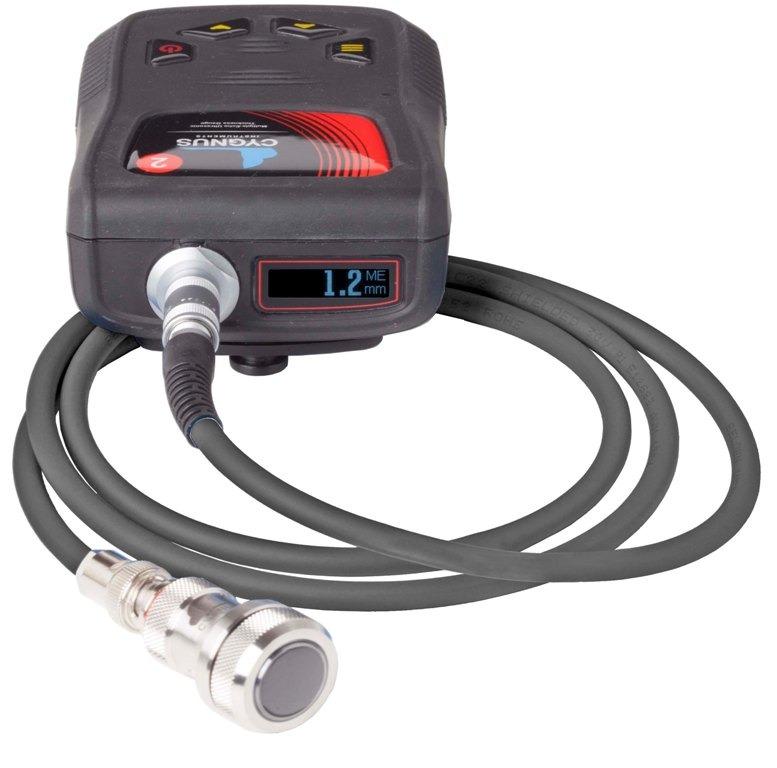

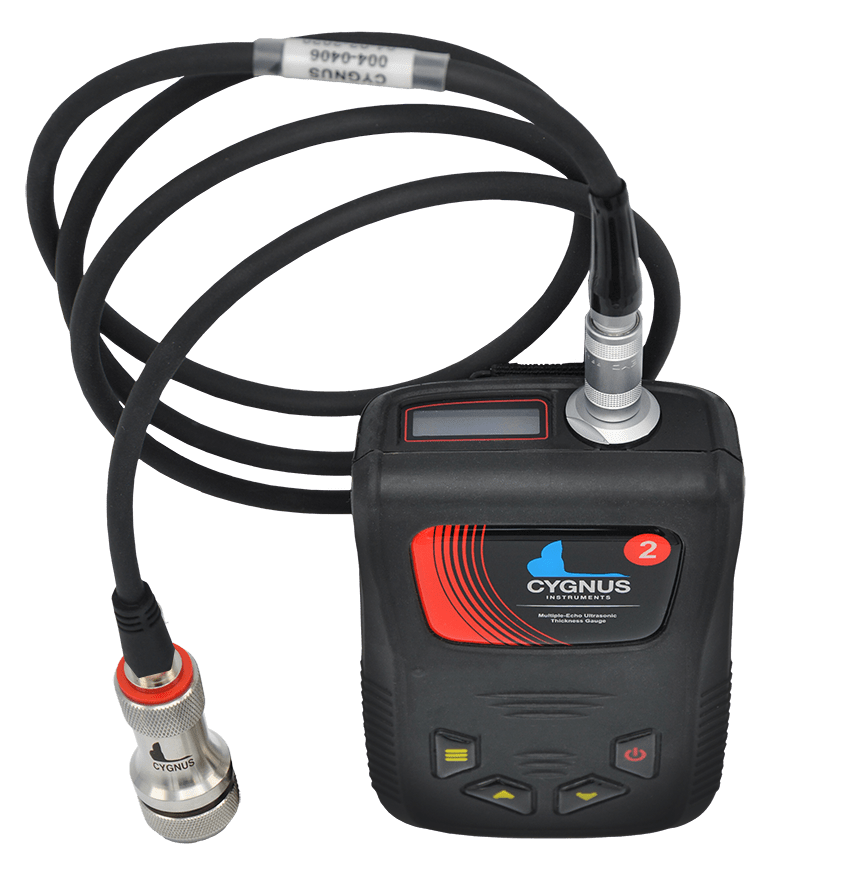

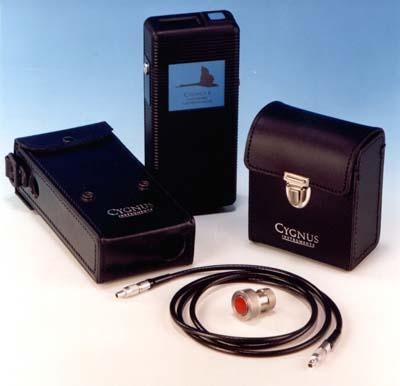

Cygnus 2 Hands Free Multiple Echo Ultrasonic Thickness Gauge
Pine Item #
This hand held, multi-echo ultrasonic thickness gauge measures metal thickness to determine wastage and/or corrosion. Accepted by the major classification societies and bodies, it is easy to use and has a lightweight, ergonomic design. A major feature of this instrument is that it does not require the removal of surface coatings to gather thickness measurement readings.
Features:
Multiple-Echo for reliable, accurate through coating measurements
A NEW high durability LCD rotatable display for all lighting conditions
Extremely rugged enclosure – shock and impact to MIL STD 810G
Environment sealing to IP67 – MIL STD 810G
Deep-coat mode – measures through coatings up to 20 mm thick
Cygnus echo-strength bars assist thickness measurements
TPE over molded enclosure
Buttons designed for minimum of 100,000 depressions
Fully sealed battery compartment (contains any leaking battery fluids).
Specifications
Manuals & Data Sheets
Videos
| Materials | Sound velocities between 1000 m/s – 9000 m/s – covers virtually all common engineering materials |
| Accuracy | ±0.1 mm or 0.1% of thickness measurement, whichever is greatest, when calibrated in accordance with Cygnus Instruments calibration procedure |
| Resolution | 0.1 mm or 0.05 mm |
| Measurement Range in Steel | 3 – 250 mm with 2.25 MHz probe (S2C/D) 2 – 150 mm with 3.5 MHz probe (S3C) 1 – 50 mm with 5.0 MHz probe (S5C/A) |
| Connector | 1 x Lemo 1 |
| Power | 3 x AA batteries |
| Battery Life | 10 hours minimum,continuously measuring |
| Electronics | Dual channel pulser |
| Display | End-mounted LCD (rotatable) |
| Size | 132 x 82 x 34 mm |
| Weight | 300 grams (inc. batteries) |
| Operating Temperature | -10°C to 50°C |
| Environmental Rating | IP67 (dust tight and immersion – 1 metre for 30 mins) MIL STD 810G Method 501.6 (high temp +55°C) MIL STD 810G Method 502.6 (low temp -20°C) MIL STD 810G Method 507.6 (humidity 95%) MIL STD 810G Method 512.6 (immersion – 1 metre for 30 mins) |
| Shock and Impact | MIL STD 810G Method 514.7 (vibration – 1 hour each axis) MIL STD 810G Method 516.7 (shock 20g – 11ms half sine shock pulse, 40g 11ms in each axis) MIL STD 810G Method 516.7 (26 drops – transit drop 1.22 m) |
| Standards | Designed for EN 15317 |
| Environmental | RoHS, WEEE compliant |
| Warranty | 3 years on gauge and 6 months on probe |
