GE DMS Go+ Portable Thickness Gauge

Pine Item #54686

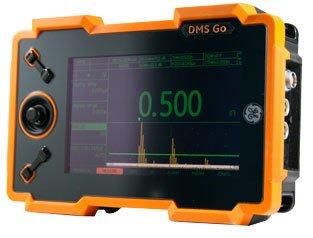

The well-established and proven ultrasonic thickness gauge DMS Go is available with joystick operation or as the new DMS Go+ with arrow-key operation. The DMS Go and the new DMS Go+ are both ultra-portable and ultra-powerful thickness gauges.

Both units have a small protected hand-held housing with the biggest A-Scan display in its class and features which are essential for inspections based on common codes and standards.

The new DMS Go + is the youngest member of the DMS Go family equipped with an arrow-keypad and the latest industrial electronics to provide accurate, reliable and comprehensive thickness inspection data.

Apart from the different operational devices the joystick or the arrow-keypad, the operation and the menus of both instruments are the same. The accessories are inter-changeable with both instruments. And even the stored instrument settings of the DSM Go can be used with the newDSM Go + and vice versa.

The DMS Go+ uses the same operating platform and hardware as the state-of-the-art USM Go+ portable flaw detector. Both DMS Go and DMS Go+ thickness gauges can be easily converted into comprehensive flaw detectors with a simple software upgrade.



Key Features:

High performance thickness measurement

  • Zero cross measurement technique for high measurement stability and reliability
  • Automatic gain control for excellent repeatability and corrosion monitoring.
  • Built-in temperature compensation for accurate measurement up to 540 °C (1000 °F)
  • Multiple calibration and zeroing modes for repeatable accuracy.
  • Multiple measurement modes, including thickness, A-scan, B-scan, Min/max and differential.

High capacity data recorder and compatibility with powerful data management systems

  • On-board data recorder, with capacity of hundreds of thousands of thickness readings, with storage of A-scan, B-scan and MicroGrid attachments
  • Data can be organized in pre-set, custom or advanced file structures.
  • Data transfer is by SD card or via USB port to PC. Data can be transferred in various file formats to allow easy integration with user data management systems.
  • Compatible with UltraMate and UltraMate Lite data management programs to allow for comprehensive data analysis and documentation.

Ease of use

  • Intuitive joystick (DMS Go) and arrow-keypad (DMS Go+) for positive digital control of parameters
  • One hand operation and one-hand, menu-directedcalibration process
  • A "Flip", function allows use by both left-handed and right-handed operatives.
  • A large, 800x480 pixel, display screen, ergonomically sized to reduce eye-strain, which can be adjusted to provide optimum visibility in various ambient light conditions.
  • Small size, lightweight (870g, 1.9lb), robust construction to IP67 for operation in harsh environments.
  • Battery allows up to 10 hours operation and can be re-charged on- or off-board.
Features:

Zero cross measurement technique for high measurement stability and reliability

Automatic gain control for excellent repeatability and corrosion monitoring.

Built-in temperature compensation for accurate measurement up to 540 °C (1000 °F)

Multiple calibration and zeroing modes for repeatable accuracy.

Multiple measurement modes, including thickness, A-scan, B-scan, Min/max and differential.

Quantity must be 1 or more
Email for Quote

Specifications

Technical Specifications

Display5 inch diagonal\n800 x 480 pixels\n108 × 65 mm (W x H)
Size (W x H x D)175 x 111 x 50 mm (W x H x D)
Weight850 g with battery
Protection ClassIP 67
Operating Temperature0 - 55 °C
BatteryLi-Ion rechargeable > 8 hours operation time
Power Adapter / Charger100 - 240 V AC 50/60 Hz
Probe ConnectorDual Lemo-00 (T/R)
Pc InterfaceMicro USB
Memory CardSD-Card 16 GB max
Data Recorder100.000 readings per file. Multiple files can be stored on SD card in 8 file formats with user selectable A-Scan B-Scan and micro-grid att
Pulser120 - 250 V\nSpike wave\nAutomatically matched to probe
Pulse Repetition Frequency4 8 or 16 Hz selectable
Receiver110 dB dynamic automatic gain control Manual - high -low -auto
Measurement Range04 - 14.000 m/s (0.01 - 551)
Unitsmm inch µs
Digital Display Resolution001 mm or 01 mm (0.001- or 0.01) selectable
Measurement TechniquesZero crossing IP to 1st echo multi echo TopCoat Auto-V
CalibrationOne-point Two-point\nAuto or Manual On-block and Off-block Zero\nAutomatic V-Path correction
Display ModeThickness and A-Scan Temperature corrected thickness B-Scan\nMin/Max capture Differential
