Radiodetection

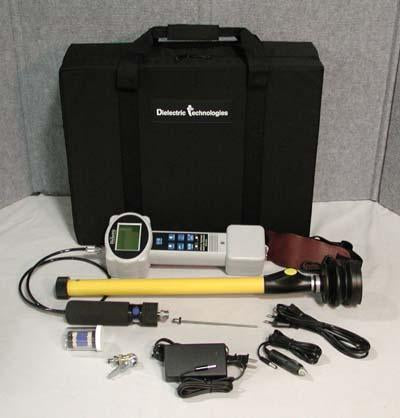

MGD 2002 Helium Leak Detector
Pine Item #51306
The MGD-2002 leak detector is designed for one-handed operation of all functions.
Equipped with tactile membrane keypad, all selections are easily confirmed with a distinctive 'click' and the back-lit display can be viewed in all light conditions.
The MGD-2002 is supplied with a built-in headphone jack for use with the audio indicator.
Features:
Utilizes either Helium or Hydrogen* as a tracer gas
Time-Lapse Bar Graph Display
Tactile Membrane Keypad
Operates in automatic (survey) mode or manual mode
One Hand Operation
Lightweight telescoping ground probe with boot
Headphone Jack for Audible Monitoring
Backlit LCD Display
Audible or Digital Output
Applications:
Leak detection
Municipal water systems
Residential water / waste systems
Radiant heating systems
Petroleum delivery systems
Buried pipelines
Underground storage chambers / tanks
Industrial air / gas liquid piping systems
Electronics industry
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals & Data Sheets
| Power | Battery: Nickel Metal Hydride 6 to 8 hours run time |
| Temperature Range | 14 °F to 113 °F (-10 °C to 45 °C) |
| Humidity Range | 10% rH to 50% rH |
| Sensitivity | Min = 25 ppm |
| Tracer Gases | Hydrogen (H) Helium (He) |
| Response Time | 5 seconds (approx.) |
| Resolution | Low range = +/- 25 ppm |
| Unit Weight | US: 3.1 lbs Metric: 1.6kg |
