RAE Systems

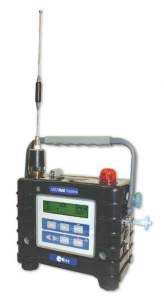

RAE Systems AreaRAE Gamma Steel
Pine Item #55393
AreaRAE Gamma is a multi-gas, wireless monitor. Housed in a stainless-steel enclosure, it is rugged, portable and weather resistant, ensuring that it can withstand harsh environments. The AreaRAE Gamma can monitor up to five threats, including VOCs, LEL, Oxygen, and two user-selectable toxic sensors.
Strategically placed AreaRAE Gamma monitors can be used to quickly establish a perimeter, allowing individuals to back off to a safe position and receive readings from up to 2 miles (3 km) away.
Features:
Real-time wireless data transmission with built-in RF transceiver
View real-time sensor data and alarm status at headquarters or command center
ProRAE Remote software simultaneously controls and displays readings for up to 32 remote detectors
License-free, ISM band RF transmission with a communication range of up to 2 miles (extendable with RAELink2 Repeaters)
24 hours continuous operation with a built-in Li-ion battery
24x7 continuous operation when plugged into wall charger
Interchangeable Li-ion or alkaline battery pack
Data is easily downloaded with ProRAE Suite software
Large digital display & keypad
Applications:
CBRNE
Clandesitine Labs
Decontamination
Emeregency Response
Fire Overhaul
Hazmat Reponse
Urban Search and Rescue
Venue Protection
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals & Data Sheets
| Sensors | Up to five sensors (PID, LEL, Gamma, and two selectable toxics; or PID, LEL, Gamma, O2, and one selectable toxic) |
| Battery | Rechargeable, 7.4V/4.5Ah, Lithium-ion battery pack with built-in charger (less than 10 hours charge time) or a 6 C-size alkaline battery pack |
| Operating Hours | Up to 18 hours continuous operation on battery power |
| Display | 2-line, 16-digit LCD with manually activated LED back light |
| Keypads | 3 operation and 4 programming keys |
| Alarm | Flashing red LED cluster to indicate exceeded preset limits, low battery or sensor failure |
| Datalogging | 4,000 points for each sensor with time stamp, serial number, user ID, site ID |
| Safety Certification | CSA Classified for use in Class I, Division 2, Groups A, B, C, and D |
| RF Range | Up to 2 miles, extendable with RAELink Repeaters |
| Calibration | Two-point field calibration for fresh air and standard reference gas |
