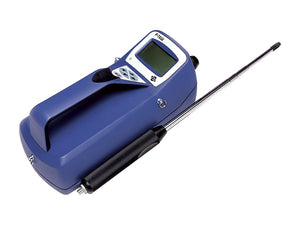

TSI AEROTRAK 9303 Handheld Particle Counter
TSI Instruments

TSI AEROTRAK 9303 Handheld Particle Counter

Pine Item #51354

The TSI AEROTRAK™ Handheld Particle Counter Model 9303 offers the most features and flexibility for customers interested in a low cost and versatile handheld particle counter. The Model 9303 features a sturdy yet lightweight high-impact injection-molded plastic design for easy handling. The instrument is easy to configure using an intuitive keypad. The internal memory can store up to 1,500 sample records of particle count data which can be conveniently viewed on screen or downloaded using a USB port.

The instrument reports up to three particle sizes simultaneously. The middle channel is user selectable for either 0.5, 1.0, 2.0, or 2.5 μm.

The Model 9303 complies with all the stringent requirements set forth in ISO 21501-4. It is calibrated with NIST traceable PSL spheres using TSI's world-class Classifier and Condensation Particle Counters, the recognized standard for particle measurements.

Features:

0.3 to 25 µm size range

0.1 CFM (2.83 L/min) flow rate

Up to three channels of simultaneous data

ISO 21501-4 compliant

USB serial output

1500 sample record storage

250 location labels

Large 3.2-inch (8.1-cm) display

On screen data review

User selectable middle size channel

Removable Li-ion battery

Intuitive keypad menus

High impact injection molded plastic

Lightweight - only weighs 1.3 lbs (0.58 kg)

Applications:

0.3 to 25 µm size range

0.1 CFM (2.83 L/min) flow rate

Up to three channels of simultaneous data

ISO 21501-4 compliant

USB serial output

1500 sample record storage

250 location labels

Large 3.2-inch (8.1-cm) display

On screen data review

User selectable middle size channel

Removable Li-ion battery

Intuitive keypad menus

High impact injection molded plastic

Lightweight - only weighs 1.3 lbs (0.58 kg)

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Battery LifeUp to 4.5 hours of continuous use
Recharge Time<3 hours
BatteryRemovable/rechargeable Li-Ion
Power110 to 240 VAC 50 to 60 Hz universal in-line power supply with\ncountry specific plugs
Display8.1-cm 160 x 160 monochrome LCD
Status IndicatorsLow battery and service
Communication ModeUSB serial output
Data Storage1500 sample records
Sampling Frequency1 to 999 cycles or continuous
Flow Rate2.83 L/min (0.1 CFM)
Light SourceLong life laser diode
Concentration Limits2000000 particles/ft3 at 5% coincidence loss
Counting Efficiency50% at 0.3 µm; 100% for particles >0.45 µm (per ISO 21501-4\nand JIS)
Size Resolution<15% @ 0.5 (per ISO 21501-4 requirements)
Particle Channel Sizes0.3 µm and 5.0 µm fixed; 0.5 1.0 2.0 or 2.5 µm selectable\nmiddle channel
Size Range0.3 to 25 µm
External SurfaceHigh impact injection molded plastic
Vacuum SourceInternal pump
ExhaustInternally filtered
Sampling Time1 second to 99 minutes 59 seconds
Sampling ModesManual and automatic
CalibrationNIST traceable with TSI calibration system
Zero Count Level<1 count /5 minutes (per ISO 21501-4 and JIS B9921)

Dimension

USMetric
Length-230
Width-112
Depth-64

Weight

USMetric
Weight with battery-0.58
